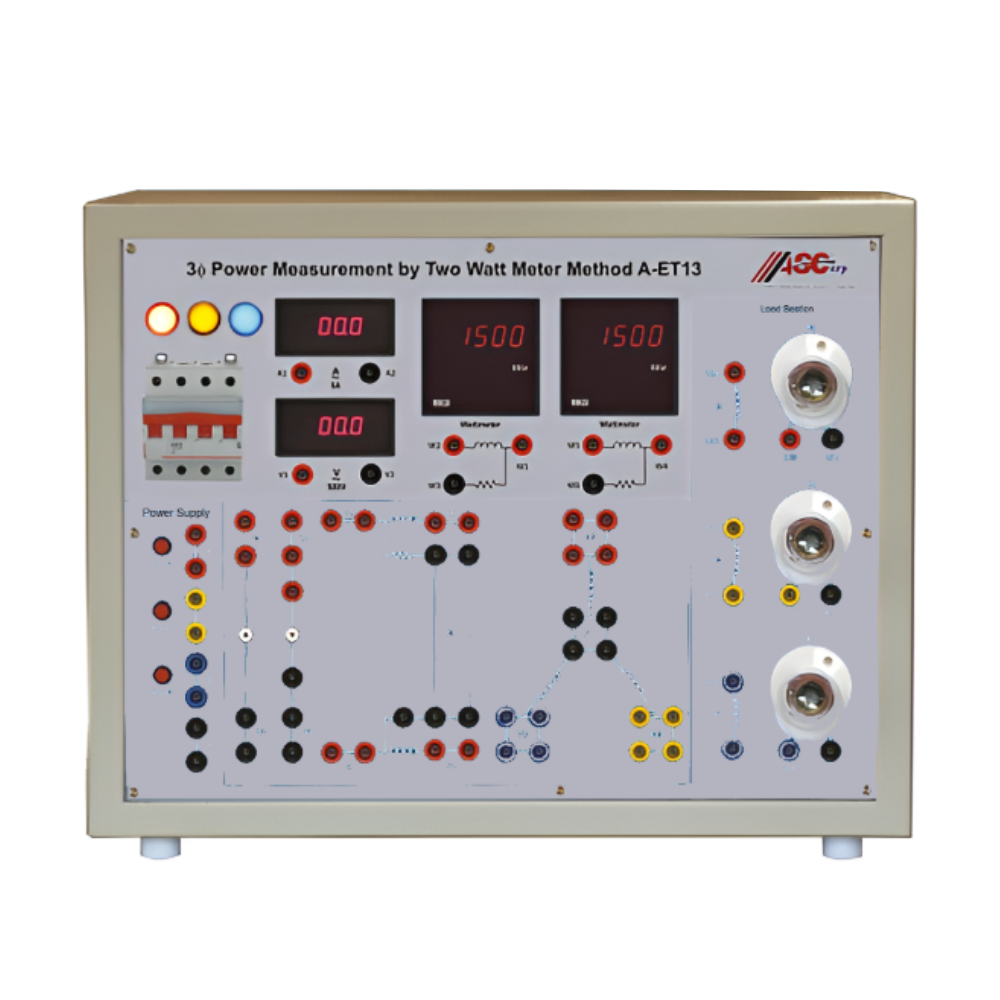

ASC A-ET13 Three Phase Power Measurement by Two Watt Meter Method Trainer is an exclusive and useful
product for Electrical laboratories. It is designed to explain the students, how total power is measured in a three phase circuit using only two wattmeter’s. With this product, student can study the power flow in three phase system and correspondingly calculate Active, Reactive and Apparent power. Apart from this student can easily understand different three phase parameters like Line Voltage, Line Current, Phase Voltage, Phase Current and their mutual relationships to verify star and delta properties in three phase circuit.



Inbuilt Inductive Load
Facility to configure Star and Delta Load
Provided with bulb holder to use load externally
Equipped with supply indication lamps
Designed by considering all the safety standards
Diagrammatic representation for the ease of connections
Facility to connect external three phase load up to 5A.


Measurement of Power Factor in a Three Phase Circuit
Measurement of Power and Calculate Active, Reactive and Apparent Power in a Three Phase Circuit by two
wattmeter method
Measurement of Three Phase Parameters in star and Delta Configurations
