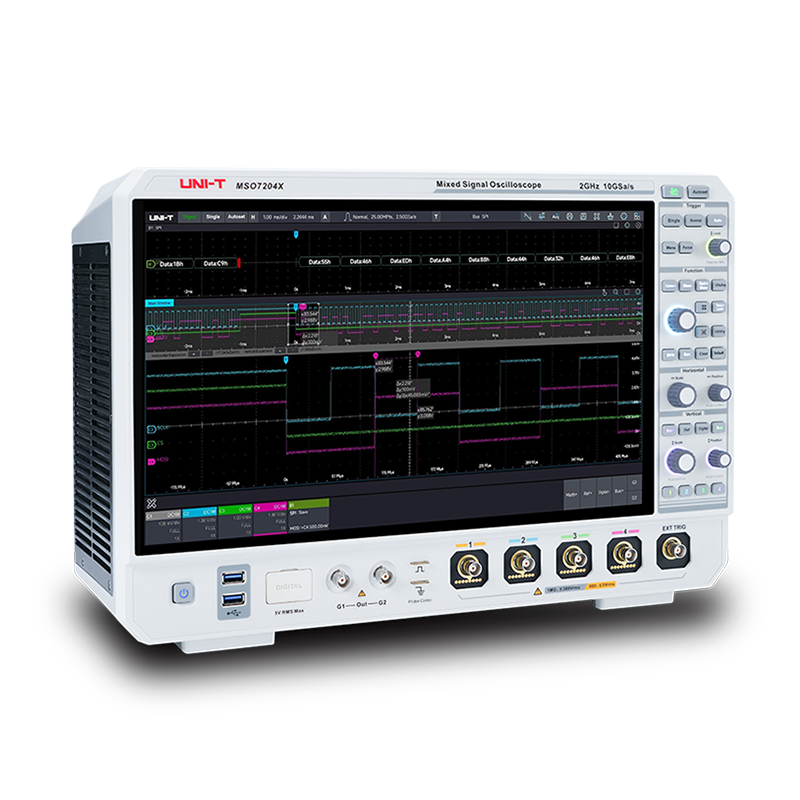

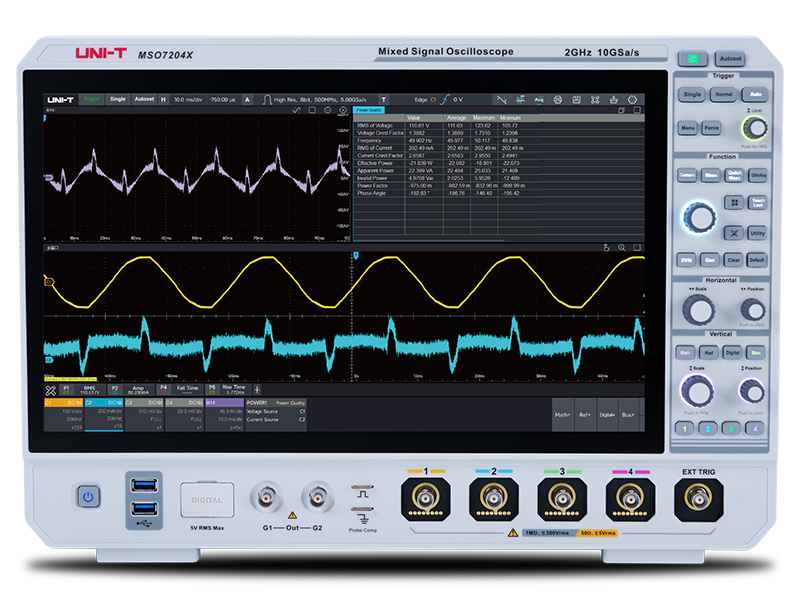

Mixed Signal Oscilloscope (MSO7000X Series)

Mixed Signal Oscilloscope (MSO7000X Series)

MSO7000X series is the brand new mixed signal oscilloscope launched by UNI-T. The bandwidth up to 2GHz & sample rate up to 10GSa/s, which has obvious advantages in high-speed signal analysis. MSO7000X has unique UltraAcq® technology, it raises the wave capture rate to 800,000wfms/s；2,000,000wfms/s at Sequence mode, combined with an ultra-long storage depth of 1Gpts, dramatically improves the ability to capture anomalous signals, as well as the ability to measure & analyze waveform details.

Categories: DSO, Test & Measuring Instruments

Description
Reviews (0)

Description

Mixed Signal Oscilloscope (MSO7000X Series) 10GSa/s | 2GHz | 1Gpts | 2,000,000wfms/s

Features

Analog channel bandwidth: up to 2GHz (1G/2GHz)
Maximum sample rate: 10GSa/s
Maximum storage depth: 1Gpts (standard)
Wave capture rate: ≥800,000wfms/s (UltraAcq®); 2,000,000wfms/s(Sequence mode)
SCPI (Standard Command for Programmable Instrument)

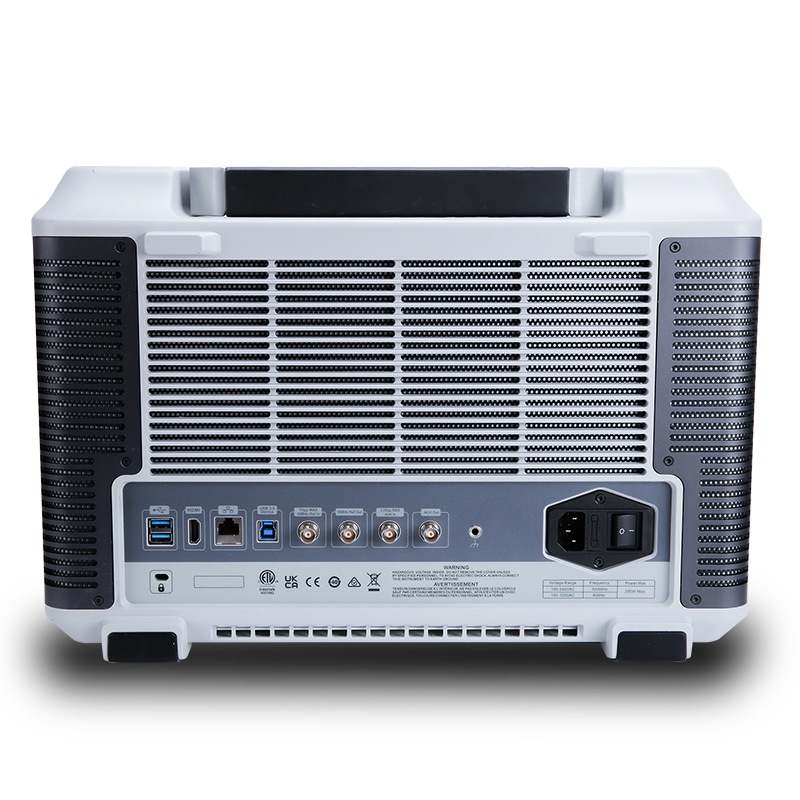

Various interfaces: USB Host & Device, LAN, HDMI, AUX In/Out, 10MHz Ref In/Out
Built-in 16-channel logic analyzer: sample rate is 1.25GSa/s, storage depth is 125Mpts
