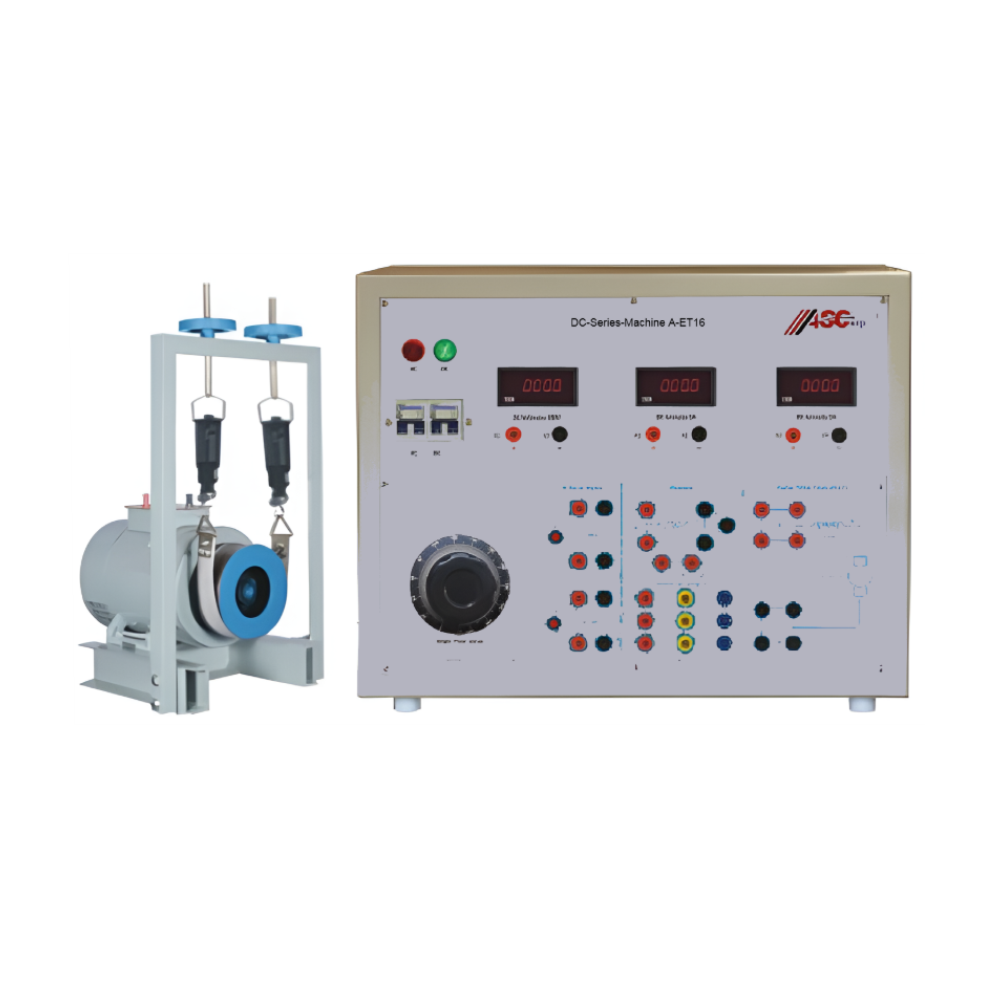

ASC A-ET16 DC Series Machine Lab is an important and exclusively designed product for electrical laboratories. DC Machines are an important part of Electrical Engineering Syllabus. This panel plays a vital role in letting the students have a basic knowledge about the operating principle of DC machine. It provides complete learning Contents to enhance practical knowledge and explains students the fundamental concepts of DC Series Machine. All connections and appearance of panel are designed in a manner that students can make connections by themselves.



Machine with Mechanical Loading Arrangement
Provided with Digital Tachometer
Machine with Class “B” Insulation
Heavy Duty Base/Channel
Brake Drum/Pulley with heat suppression facility
Designed by considering all the safety standards
Diagrammatic representation for the ease of connections
Exclusive and Compact Design


Study of Operating Characteristics of DC Series Motor
Study of Speed Control of DC Series Motor using Field Current Control
Study of Speed Control of DC Series Motor using Armature Voltage Control
